ModelWarships.com Benson
Gleaves Class DD project.
| Drawing description and notes |
JPEG
preview images |
Revision Level |

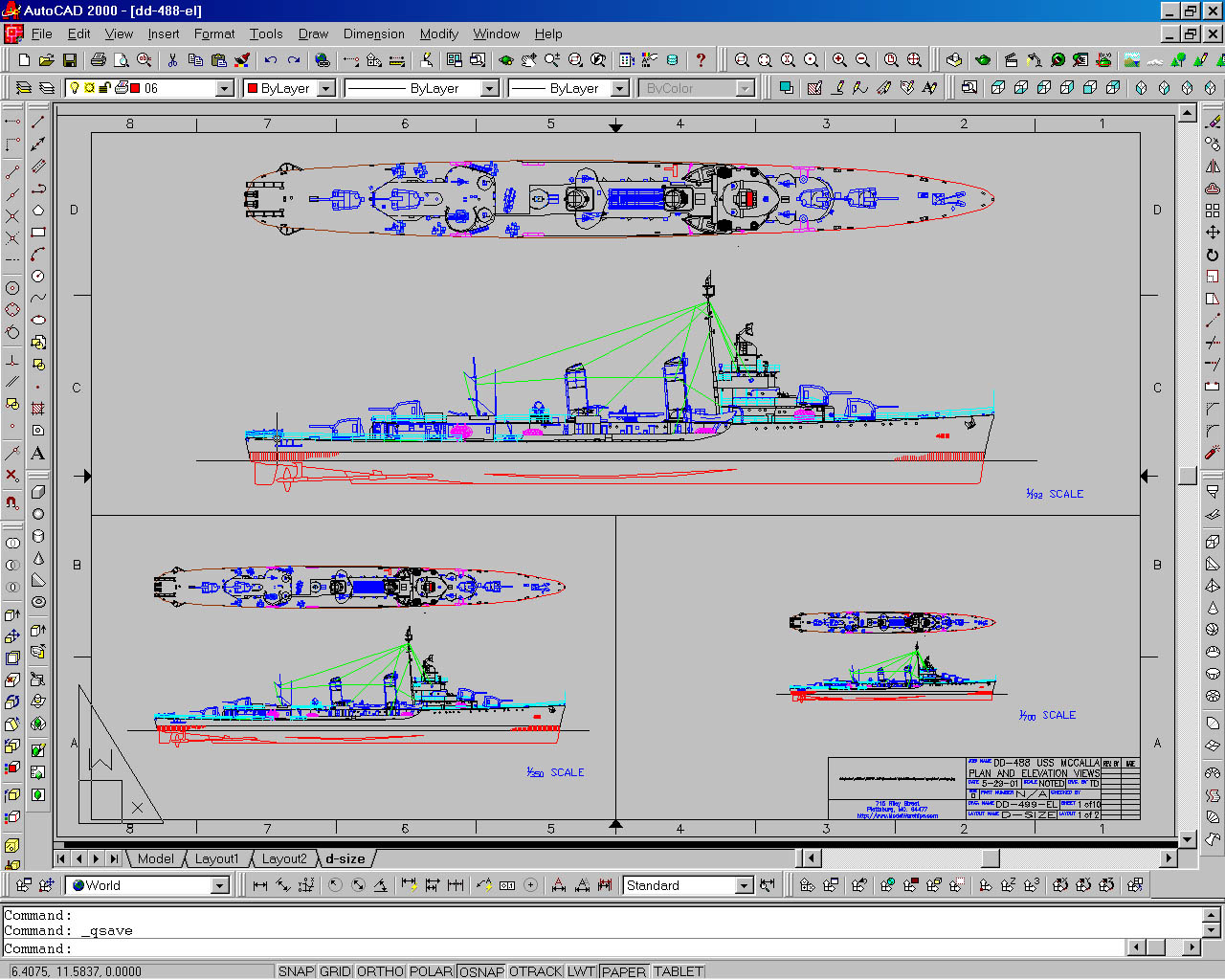

| This is the plan and elevation view of the McCalla drawn in full size |
 |
Rev 6-28-01 |

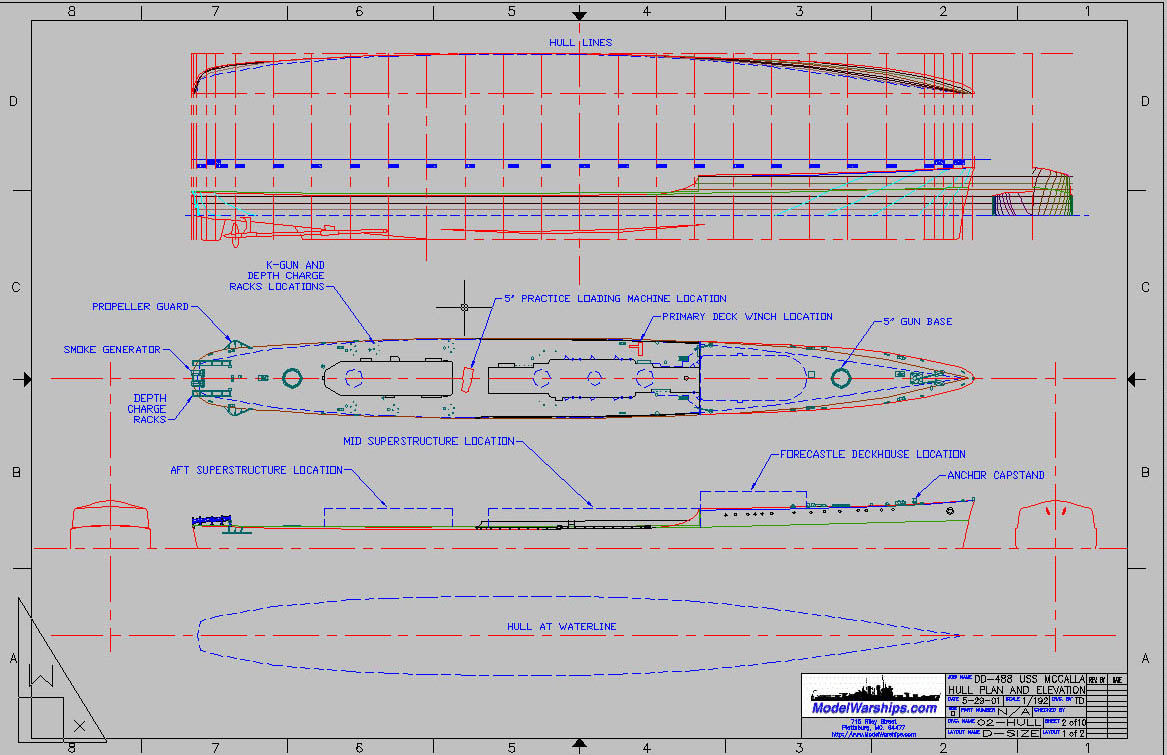

| The hull is drawn seperately with hull lines included |
 |
Rev 6-29-01 |

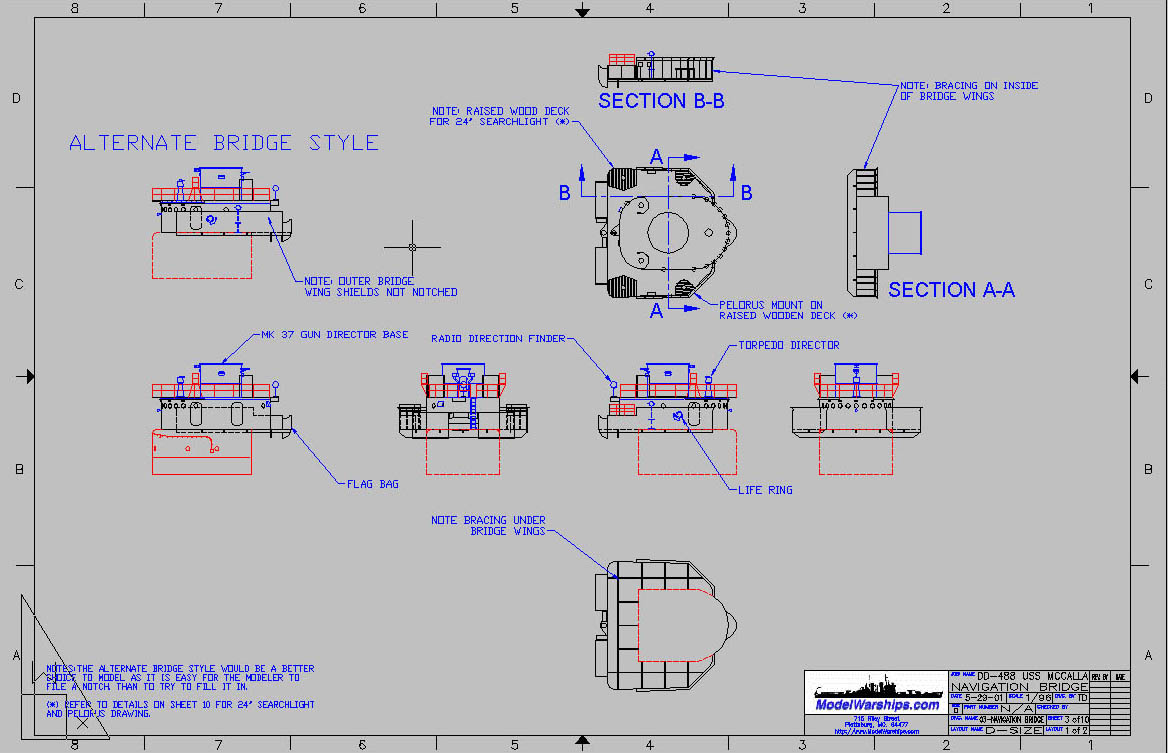

| The Navigation bridge is drawn showing bracing and other extras |
 |
Current |

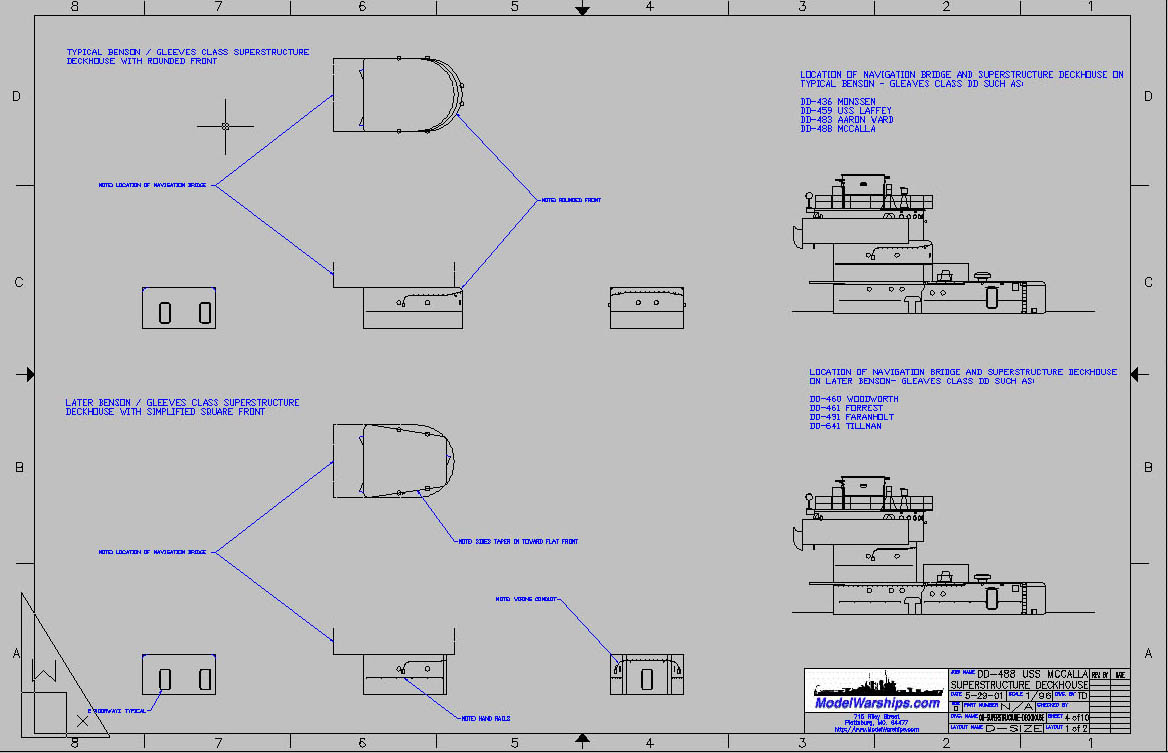

| Two types of superstucture deckhouses are shown (early round and later
square type.) |
 |
Current |
| The forecastle deckhouse is detailed in typical Benson class style |
 |
Rev 6-21-01 |

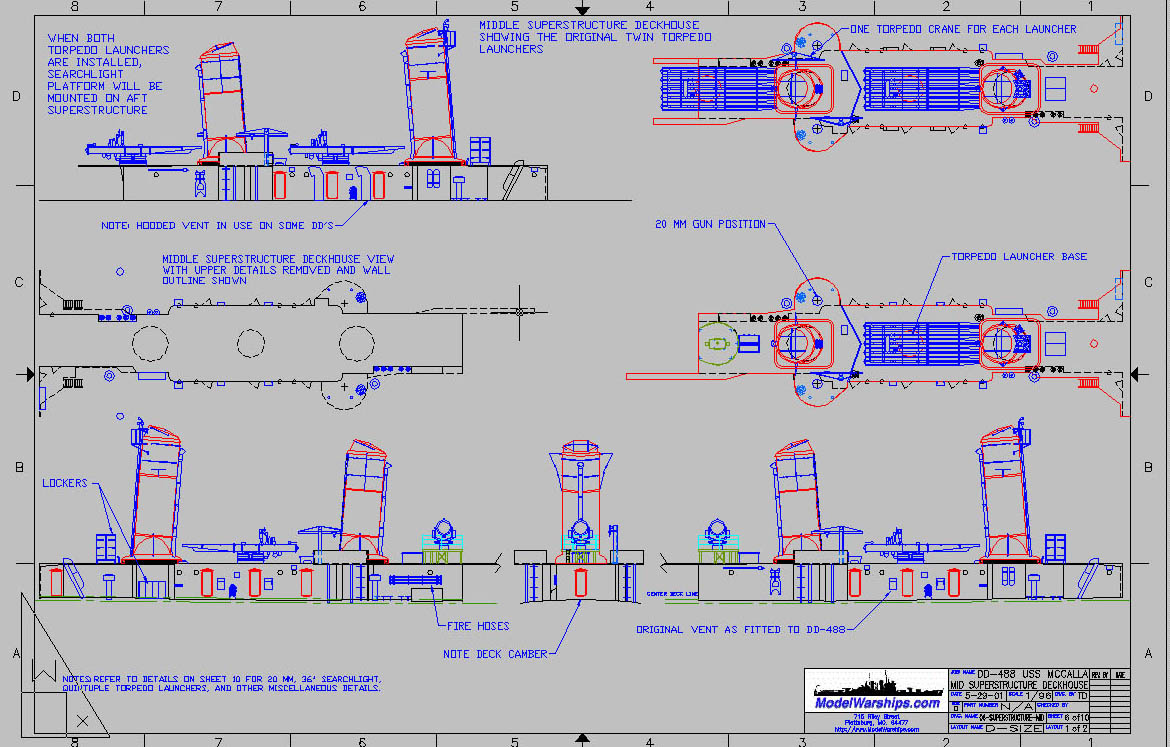

| The middle superstucture shows both single and twin torpedo configurations |
 |
Current |

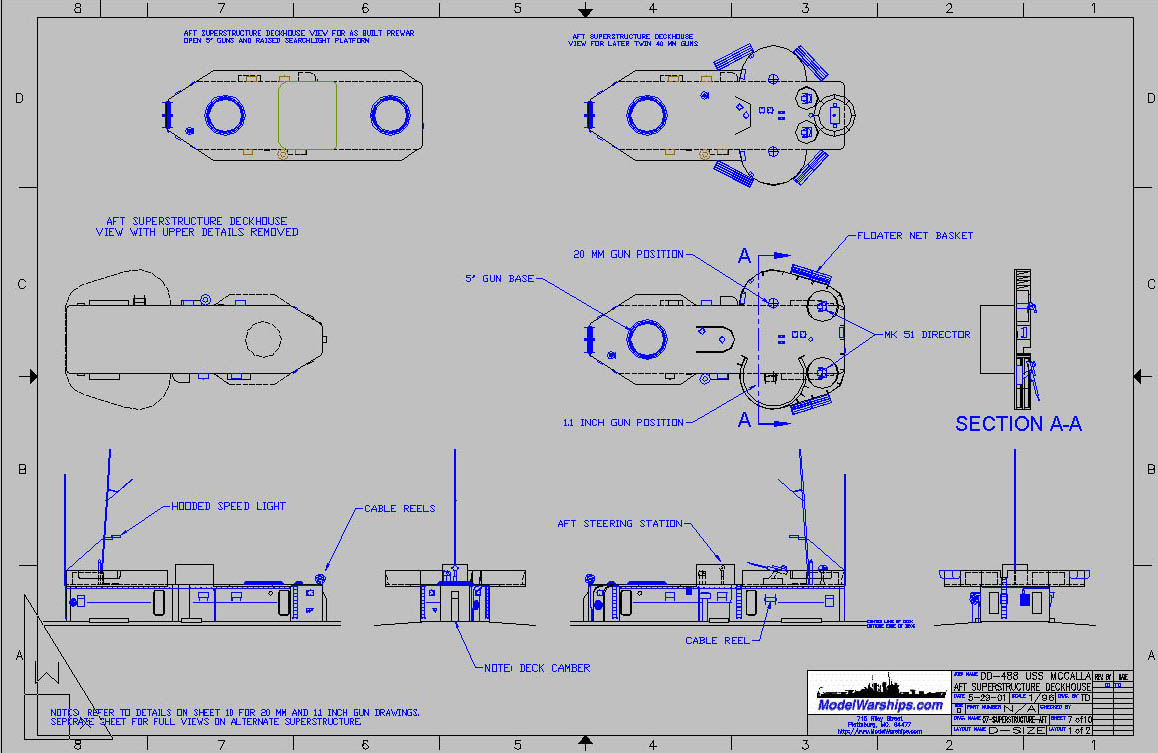

| The aft superstructure shows 1.1 and later 40 mm gun mount as well
as the original style with the 5th 5" mount |
 |
Rev 6-21-01 |

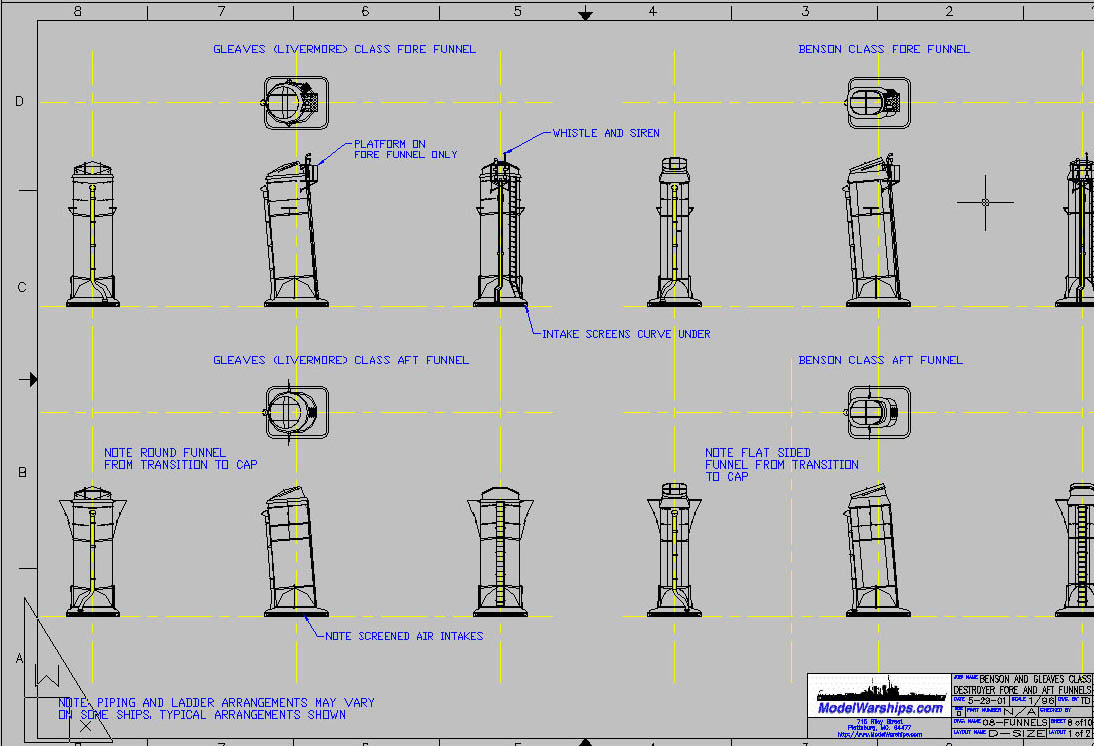

| Both the Gleaves and Benson class style funnels are shown |
 |
Current |

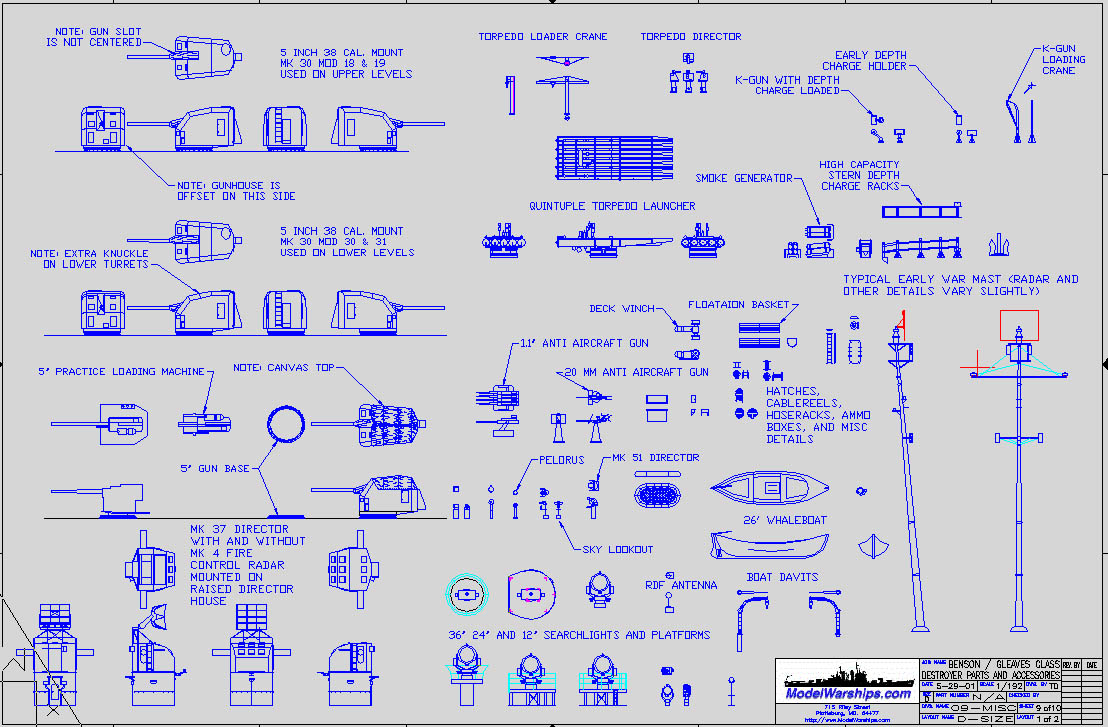

| Miscellaneous fittings including 5" guns and many accesories are all
drawn to scale |
 |
Incomplete
90% of the
parts are drawn |

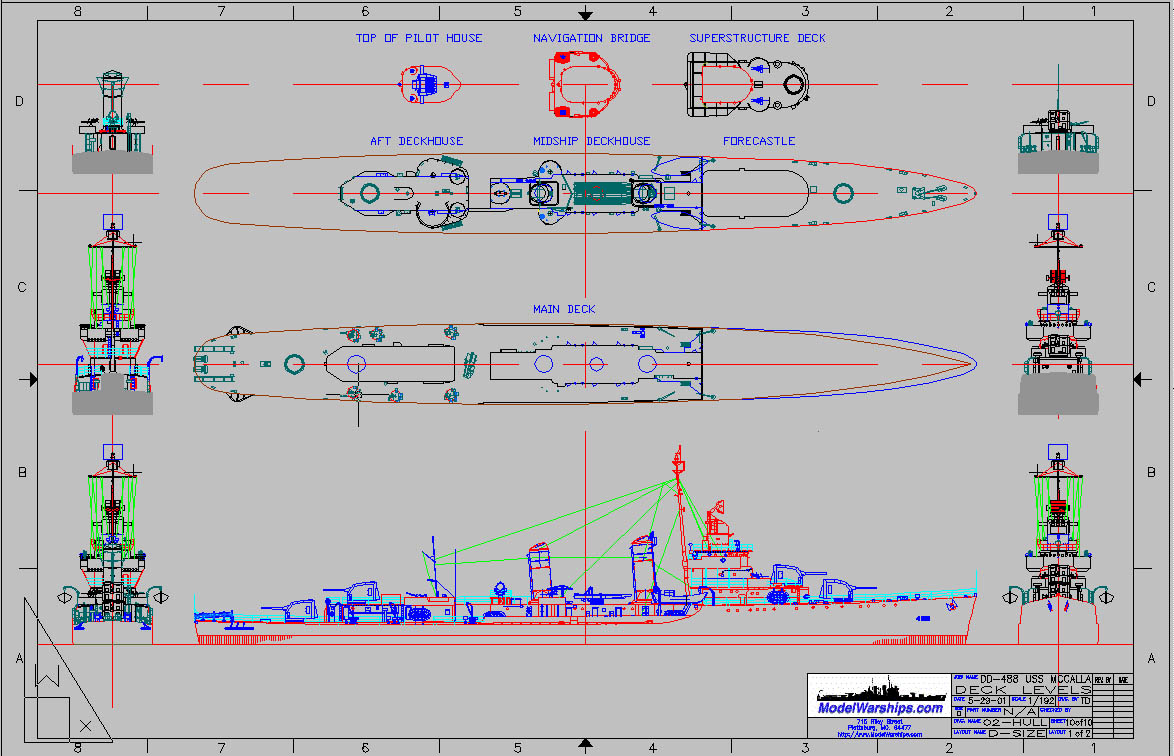

| Deck levels of the McCalla |
 |
Current |
|
|
|
Completed sheets
01-plan and elevation drawings
02-hull plan and elevation
03-navigation-bridge
04-superstructure-deckhouse
05-forecastle-deckhouse
06-superstructure-mid
07-superstructure-aft
08-funnels
09-misc-guns
10-decklevels |
|
|
Pending Sheets

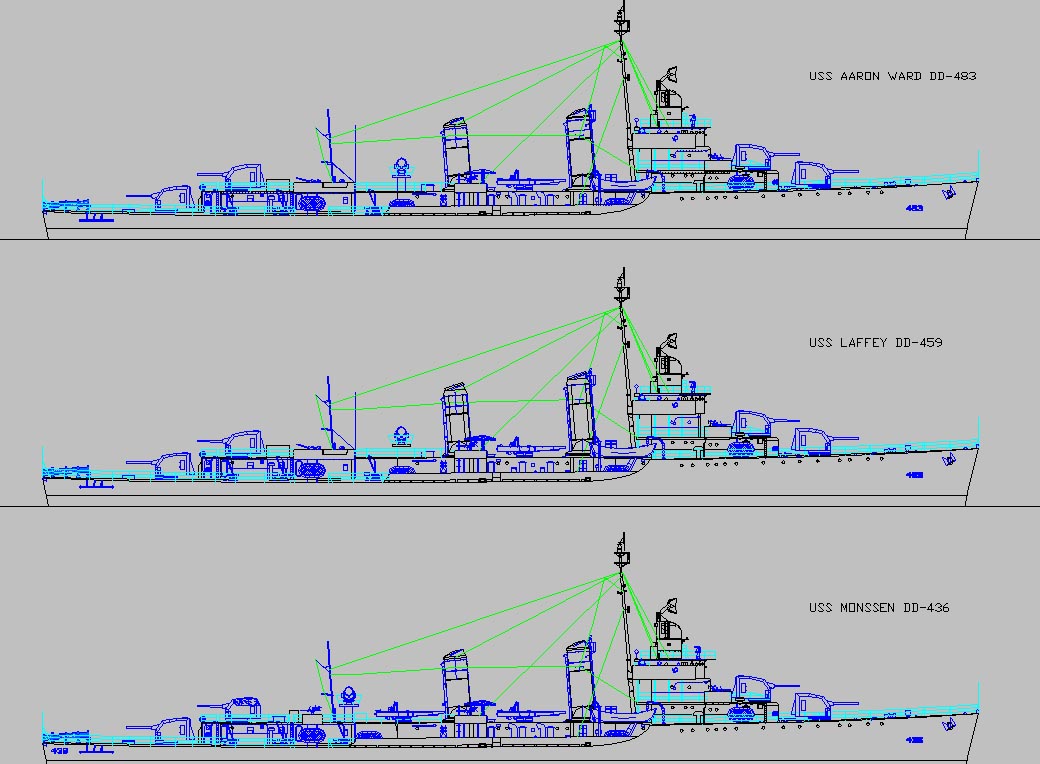

11-elevation comparisons of some of the different Benson and Gleaves
DD's
12-anything else that I have left out.
13-3d views of some components
14-3d assembly views for instructions (I will need to know how the
kit parts are done to do this last step) |
 |
|
| contact Timothy
Dike |
|
|
|
|
|
